下挖3-5米滚筒筛式淘金船设备清单

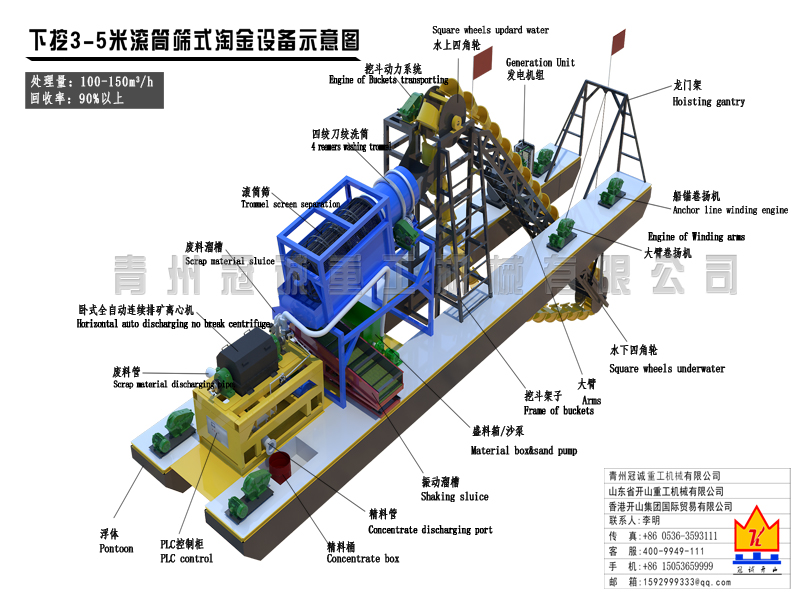

流程简介:

原料通过挖斗进入四绞刀绞洗筒进行绞洗脱泥,然后进入滚筒筛内进行筛选分级为:<6mm细料、6-30mm粗料、30mm以上废料三个级别,其中30mm以上废料直接通过废料溜槽排出至废料区域;

6-30mm粗料进入一台振动溜槽进行回收后,废料排出至废料区域;

<6mm细料排入盛料箱中,通过沙泵进入一台卧式全自动连续排矿离心机内进行精选,精料排入精料筒内,废料由废料管排出。

Technological process

The material from the bucket shipped into the trommel screen fixed with 4 reamers which can ream and wash the clay off,then to be separating into 3sizes <6mm,6-30mm>30mm,the biggest size useless are directly discharged to waste area by scrap sluice;

6-30mm material into shaking chute for recycling, scrap material discharged into the waste area;

The small size material <6mm gettinginto the material box through sand pump feeding into a horizontal auto&no break discharging centrifuge, then the concentrate got and finally into fine material box, scrap material to be get rid from waste pipe.

技术参数

      名称
Prouduction Name

规格
Specifications

数量
Quantity

功率 Power/KW

备注
Remark

浮体
Pontoon

单宽1.8米,高0.92米,长25米
Single width 1.8m,height 0.92m,Length 25m

1套





挖斗式洗沙机

Bucket type sand washing machine

主支架高5.6米:16#槽钢对扣
Main frame height:5.6m Double 16#Usteel
水下大臂长16.5米:12#/10#槽钢
Arms under water:16.5m 12#/10#U steel
80#挖斗:共60个
80#Bucket:total 60 pieces
链条:高锰钢焊接
Chain:High manganese steel welding
减速机:750#
Reducer:750#

1套

37



滚筒筛
Trommel screen separator

绞洗筒长2.2米,四条绞刀
The trommel fixed with 4 Reamers: length 2.2m
净筛孔长度3米,内径1.3米,外径:1.6米
Mesh length:3m,inner diameter:1.3m outside diameter:1.6m
支架:15#方管
Frame:15#square pipe

1套

7.5



卧式离心机
Horizontal centrifuge

1200#连续排矿全自动离心机
1200#Auto discharging with no break centrifuge

1套

21.5

PLC电脑控制
Controlled by PLC

振动溜槽
Shaking sluice

1350*4500mm

1套

3



大臂卷扬机
Arms winding engine

400#减速机

1台

11



主锚
Main Anchor

350#减速机

1台

3



锚绳卷扬机
Winding engine of Anchor line

3KW

4台

12



水泵
Water pump

7.5KW

1台

7.5



离心泵
Centrifugal pump

7.5KW

1台

7.5



沙泵
Sand pump

4inch

1台

11



配电柜
Electricity cabint

含至设备电机线
Including the electricity wire to machine

1套

-



发电机组
Generation unit

150KW

1套

-



总用量功率
Power

同时用电量121KW,工作中用电量:95KW(不含照明及其它建议用150KW发电机组)
Power121KW needed running all machines sametime,the working period 95KW needed

(not including lights,we advise to  use150KW generation unit)
