沙金岩金处理方案:每小时150立方处理量振动筛淘金设备

【设备简介】

本套淘金设备为振动筛+振动溜槽组合式淘金设备，是我公司根据用户实际需求进行独立设计制作而成，具有处理量大、回收率高，设备保养维修方便等特点。

Introduction

This set of mahine is including vibrating screen and gold shaking sluice,design and manufactured by customer’s requirement with high capacity and recovery,convenient maintenance etc.

【流程概述】

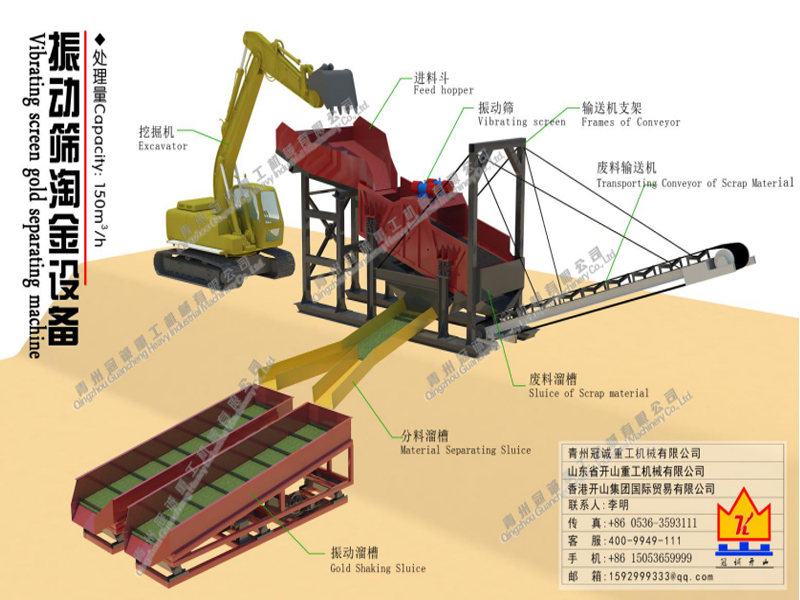

原料通过挖掘机送入上料斗中，通过高压水冲洗后进入振动筛内进行筛选分级为细料、粗料与废料三种规格，其中粗料与废料直接通过废料输送机输送至废料区域；

细料通过分料溜槽进入两台振动溜槽进行回收后，尾料排入废料池中。

Technological process

The raw material feeding by excavator,then washed by high pressure water and getting into vibrating screen to be separated into 3 sizes,the samller,small&big size,the big and scrap material are getting rid from transporting conveyor.

The smaller and small size getting into gold shaking sluice to recover and scrap material getting rid to the waste pool.

【技术参数】

名称 Prodution name		规格 Specification	数量 Quantity	功率 Power /Kw	备注
振动筛	进料斗 Feed hopper	2800*2700mm	1套	3KW
	振动筛 Vibrating screen	1500*3500mm 上层筛：Ø25mm提油杆 The upward screen:Ø25mm sucker rod 下层筛：Ø20mm聚氨酯筛网 The downward screen:Ø20mm Polyurethane mesh
	支架 Frame of vibrating screen	振动筛：20#工字钢 Vibrate screen:20# Double T steel 进料斗：15#方管 Feed hopper:15# square pipe
	浮体 The floating frame	16#槽钢、5mm铁板 16#U steel,5mm thick iron plate
	分料溜槽 Material separating sluice	铺设淘金毡 With gold carpet
废料输送机 Transporting conveyor of scrap material		皮带宽度：600mm，杆长6米 Belt width:600mm,Pole length:6m	1台	3KW	电动滚筒
振动溜槽 Gold shaking sluice		1500*4500mm	2台	3KW*2
水泵 Water pump		7.5KW	1台	7.5KW
配电柜 Electricity Cabint			1套	-
总用电功率		19.5KW
