岩金矿提取方案每小时15吨处理量

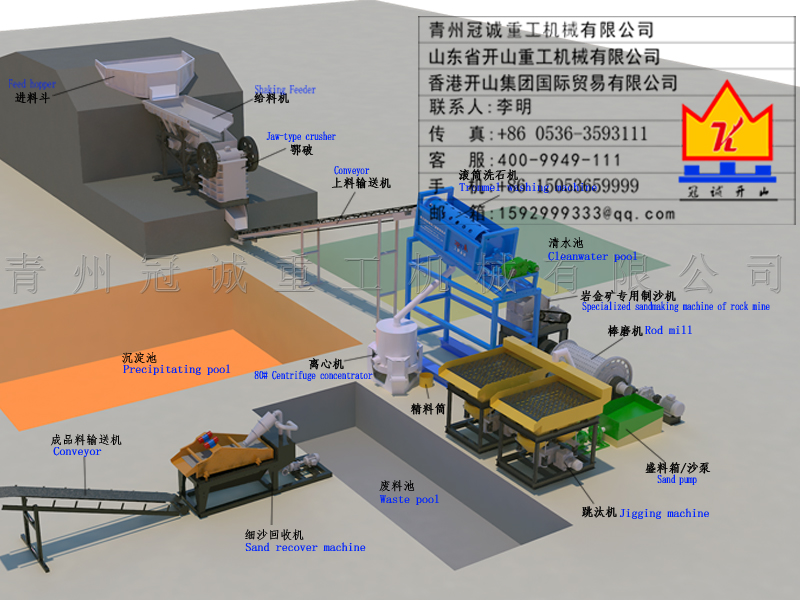

流程概述：
原料通过工程车辆送入进料斗中，然后通过振动给料机送入一台鄂式破碎机内进行破碎，破碎后的物料通过上料输送机均匀送入滚筒式洗石机内进行清洗筛分为粗料与细料两种规格。
6mm以下细料进入一台80#选金离心机进行精选，废料排入废料池中；6mm以上粗料进入一台岩金矿专用制沙机内进行破碎制沙，然后进入一台棒磨机进行棒磨，棒磨后的细料排入盛料箱内通过沙泵打入2台跳汰机内进行筛选回收，废料排入废料池中。
废料池中的细沙通过沙泵进入一台细沙回收机内进行脱水回收，然后通过成品料输送机输送至指定区域。
Technological Process
Raw material from feed hopper getting into shaking feeder,then move into Jaw-type crusher to be crushed while going through trommel washing machine to be separated into 2siezes≦6mm or≧6mm
The smaller size materila(≤6mm) flow into 80#centrifugal concentrator for further separation,the scap material washed to waste pool.The bigger size material(≧6mm)then go through specialized sandmaking machine of rock mine to be crushed into sands to be collected,the others material getting into ball mill then wahed into 2sets of Jigging machine from sand pump for further separation,the material getting rid to the waste pool.
The sands in the waste pool can be recovered from sand recover machine getting rid of the water,then shipped by conveyor to destination.
技术参数：
|
名称 Productions |
规格 Model&Size |
功率 Power |
数量 |
|
进料斗 |
3500*2980，10mm厚钢板steel，12#槽钢U-steel |
|
1set |
|
给料机Feeder |
振动给料机 shaking feeder |
15 |
1set |
|
鄂式破碎机Jaw crusher |
2500*400mm |
15 |
1set |
|
上料输送机conveyor |
皮带宽度600，杆长16米 |
7.5 |
1set |
|
滚筒洗石机 |
Ø1000，长度3000mm |
7.5 |
1set |
|
岩金矿专用制沙机 |
800*800mm |
75 |
1set |
|
棒磨机 |
2100*3000mm |
180 |
1set |
|
跳汰机 |
JT5-2 |
7.5*2 |
1set |
|
离心机 |
80#手动排矿 |
11 |
1set |
|
6S摇床 |
3000*1620*1360mm |
2.2*4 |
1set |
|
细沙回收机 |
|
30.75 |
1set |
|
成品料输送机 |
皮带宽度600，杆长11500mm |
5.5 |
1set |
|
沙泵 |
4inch |
30 |
1set |
|
水泵 |
|
7.5 |
1set |
|
水泵 |
|
3 |
1set |
|
离心泵 |
|
5.5 |
1set |
|
离心泵管道 |
|
|
30m |
|
水泵管道 |
|
|
3pcs |
|
离心机进料管道 |
钢丝软管 |
|
10m |
|
|
|
1set |
|
|
发电机组 |
200KW |
|
1set |
|
发电机组 |
300KW |
|
1set |
|
离心泵机组 |
柴油机+离心泵 |
|
1set |
|
离心泵机组管道 |
铁制或钢丝管道 |
|
4000m |
|
总功率Total power |
411.55KW |
||
