每小时30-50吨处理量岩金矿处理设备清单
【砂金设备流程概述】

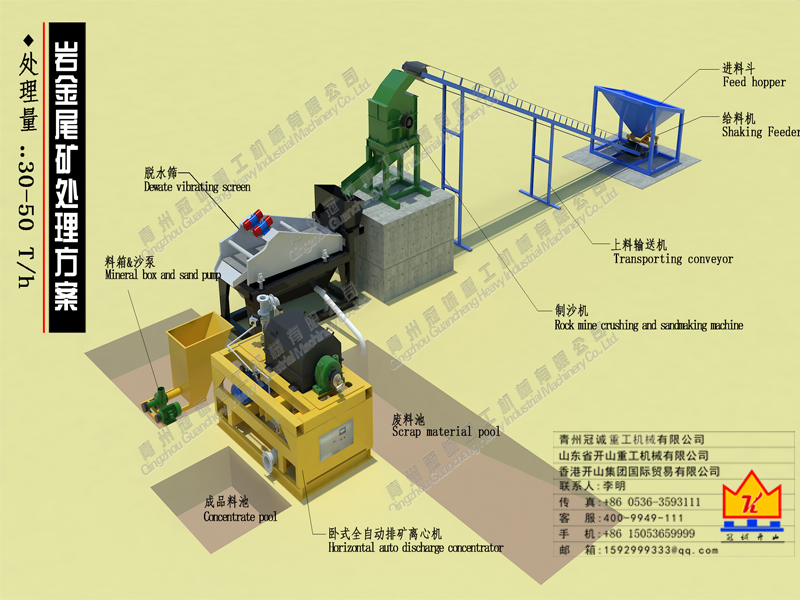

原料通过工程车辆送入进料斗，通过振动给料机均匀把料送入上料输送机，通过输送机送入制沙机内进行破碎，破碎后的物料进入一台脱水筛脱水筛进入脱水，之后排入料箱内由沙泵打入沙金选矿设备一台卧式全自动排矿离心机内进行精选，精选出的精料会自动排出至成品料池内，废料自动排入废料池。
Technical process
The raw material getting into feed hopper then well distributed with shaking feeder to be transported by conveyor into specialized rock mine crushing and sandmaking machine to be crushed,then material into dewater vibrating screen to get rid of unclean water then to be send to horizontal auto discharge concentrator by sand pump to get concentrate.
【砂金设备配置技术参数】
Detail parameter
|
Production Name
|
规格 Specification
|
数量 Quantity
|
功率 Power
|
备注 Remark
|
|
进料斗 Feed hopper |
2000*3000mm |
1 set |
0.55 |
包含一台振动给料机 Including shaking feeder |
|
上料输送机 Transporting conveyor |
皮带宽度600mm Belt width600mm |
1pcs |
5.5 |
|
|
岩金矿专用制沙机 Rock mine crushing and sandmaking machine |
600*800mm 37kw电机 |
1set |
37 |
锤式破碎机 Hammer crusher
|
|
制沙机底座 Base plate of rock mine crushing and sandmaking machine |
|
1pcs |
- |
|
|
脱水筛 Dewater vibrating screen |
|
1set |
1.5 |
|
|
料箱&沙泵 Mineral box and sand pump |
4inch |
1set |
15 |
|
|
离心机 Gold concentrator |
80#horizontal auto discharge type |
1set |
10.5 |
PLC自动控制 PLC control
|
|
离心泵 Centrifugal pump |
|
1set |
5.5 |
|
|
配电箱 Electric box |
|
1set |
- |
|
|
总功率 Total power |
75.55KW |
|||
【沙金提取设备,砂金提取设备操作说明】
一、开关机：
1、开启顺序：离心机——沙泵——脱水筛——制沙机——上料输送机——进料斗给料机
2、关机顺序：进料斗给料机——上料输送机——制沙机——脱水筛——沙泵——离心机
Operation instruction
- Turn on:Horizontal auto discharge concentrator-sand pump-dewater vibrating screen-rock mine crushing and sandmaking machine-transporting conveyor-shaking feeder
- Turn off：Shaking feeder——transporting conveyor——rock mine crushing and sandmaking machine ——dewater vibrating screen——sand pump——Horizontal auto discharge concentrator
