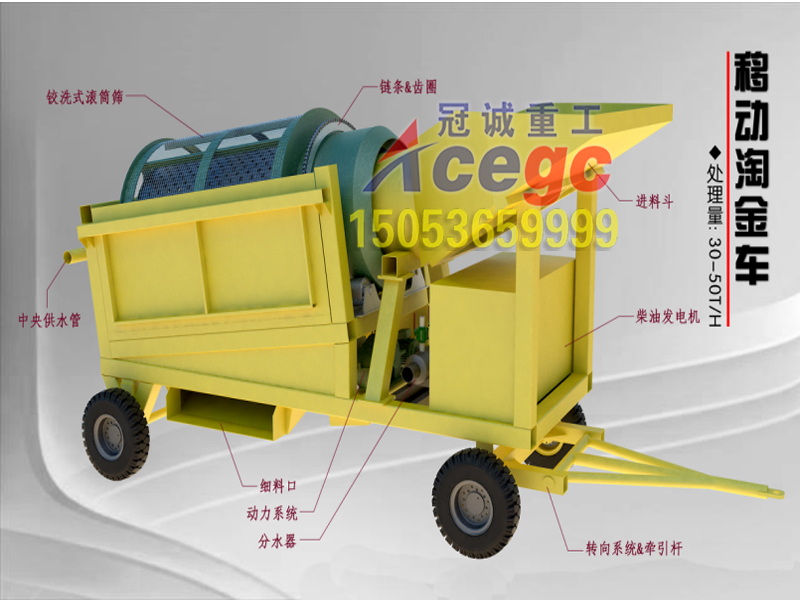

冠诚双轴移动式淘金车介绍

移动淘金车

【砂金设备,沙金选矿设备小型移动淘金车简介】

本套淘金设备为小型移动式淘金车，是青州冠诚重工机械有限公司独立设计、研发制作，通过售后服务、用户回访等渠道不断完善改进，现已经成为一种先进成熟的移动式,砂金提取设备；
该沙金提取设备,砂金提取设备移动淘金车可以使用小型挖掘机、装载机等多种上料方式，适用于沙金矿、岩金尾矿等大部分地选金场合。

Brief introduction

This small mobile gold mining car is independently designed, researched and developed by us. It has become mobile advanced equipment through continuous improvement under customer good service, user feedbacks, return visits and other channels.
The mobile gold mining car can use a variety of small excavators, loaders and other feeding methods, suitable for the majority of gold ore, such as sand gold, rock gold tailings, etc.

【该移动淘金车特点】

1、上料方式可以使用小型挖掘机或装载机等多种上料方式。
2、移动灵活方便：采用可转向设计，可以原地180度转向。
3、轮胎全部采用实心叉车胎，耐磨耐用。
4、滚筒筛内部增加了多条铰刀，增加了约一倍物料筛选行程，极大的增加了铰洗、筛分工作效率。
5、针对供水系统进行了优化：
    上料斗内部冲水负责首次冲洗物料并且推送物料进入滚筒筛内；
    滚筒筛中央冲水负责对物料进行主要的冲洗工作；
    滚筒筛侧冲水负责冲洗滚筒筛外部细筛网，防止堵孔。
6、集成度高，本辆移动淘金车集成了铰洗、筛分功能、分水器、柴油发电机于一体，只需要外接供水管道便可正常工作。
7、扩展性强：可以附加沙金提取设备,砂金提取设备振动溜槽/鼓动溜槽、离心机等砂金设备提高回收率。

Features
1, the feeding method can use a small excavator or loader and other means of feeding.
2, flexible and easy to use: the use of steering design can be turned 180 degrees.
3, tires are all solid fork tires, wear-resistant and durable.
4, the roller screen increases the number of internal reamer, an increase of about twice the material screening stroke, greatly increased the hinge washing, screening efficiency.
5, for the water supply system optimization:
The internal flushing of the hopper is responsible for the first flushing of the material and the pushing of the material into the drum screen;
The drum screen is responsible for the main flushing of the material;
Side of the drum screen flush responsible for washing of the external sieve drum fine screen, to prevent plugging holes.
6, a high degree of integration, the mobile gold car integrated hinge washing, screening function, water separator, and diesel generator in one, only the external water supply pipe can work properly.
7, the strong expansion: can be attached to the vibration chute / agitating chute, centrifuges and other equipments to improve the recovery rate.

【技术参数】

处理量：  30-50吨/小时
上料方式：  建议使用小型挖掘机
用电功率：  2.2Kw
水    泵：  7.5Kw
耗水量：  50m3/h
发电机：  柴油发电机20Kw
最小转弯半径： 3.9米
选矿筛：  内径1米，外径1.3米，净筛网长度1.5米
轮    胎：  4条实心轮胎

Technical parameter
Technical parameter:
Processing capacity 30-50 tons / hour
Feeding way it is recommended to use small excavators
Power consumption 2.2Kw
Pump 7.5Kw
Water consumption 50m3/h
Generator: diesel generator 20Kw
Wash screen internal diameter of 1 meter, external diameter of 1.3 meters, net screen length of 1.5 meters
Tires 4 solid tires
Minimum turning radius 3.9 M
