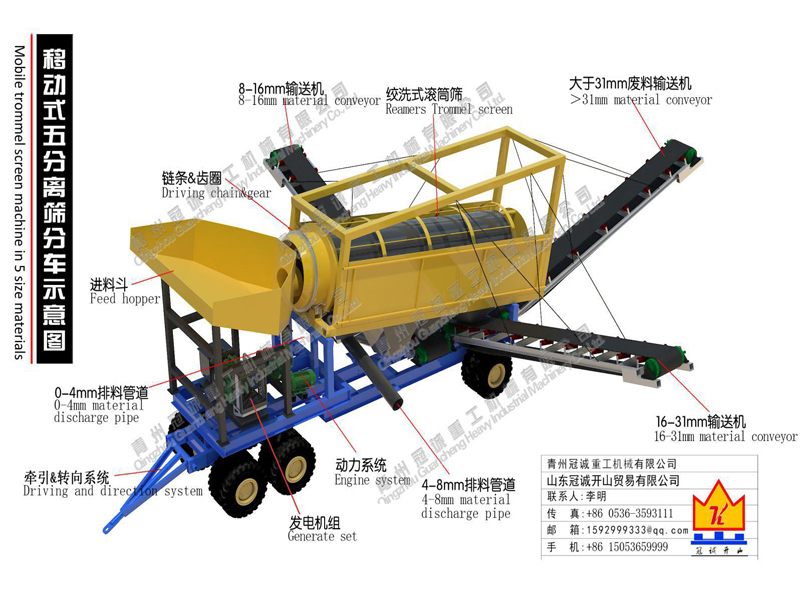

砂金设备移动式五分离筛分车
【砂金设备设备简介】
本套砂金设备为移动式五分离筛分设备，是我公司根据客户需求进成研发设计而成；
本砂金设备设计结构合理紧凑，发电机组集成在底盘上，附带牵引&转向系统，可以使用牵引车辆轻松移动至工作场地；其中选砂金机械筛分系统使用了新型核心技术的绞洗式滚筒筛，其优势如下：
选金矿机械滚筒筛动力采用双链条驱动设计，动能传递均匀、传递效率高，可以有效节省用电量；
选金矿机械内层筛采用冲孔工艺制作，内含多条铰刀从头部覆盖至尾部，能够对物料进行充分绞洗脱泥，极大的提高了筛分效率；
选金矿机械滚筒筛供水系统采用中央供水+侧供水方式，中央供水直冲滚筒筛底部物料；
侧供水负责冲洗外层筛网，能够有效防止外层筛网堵孔。
进料斗进料采用高压水反冲系统，可以保证均匀进料；
出料系统采用3条输送机+两条Ø273排料管进行排料。
Brief Introduction
This set of mobile screening machine in 5 size materials is according to customer’s requirement,designed and manufactured by our company;
The design of the equipment with new and reasonable and compact, the generate set is located on the truck chassis, with highly efficient driving and direction system, which can be easily moved to destination with driving car, in which the screening system with new type of reamers screening technology, the advantages are as follows:
The trommel screen with double chain driving design, the kinetic energy transfer uniform,transfer efficiency high,electricity consumption can be saved effectively;
The inner sieve is made by punching process, which contains reamers covering all over from the head to end, which can fully wring the material and getting rid off the clay, which greatly improves the screening efficiency;
The water supplying system with central and sides water supplying,the central can swilling big size material;
The sides water supplying system to swill the screen mesh and can effectively prevent it from being plugged.
The feeding with high pressure water swilling the material which will be well distributed into trommel screen,the discharging with 3pcs transport conveyor and 2 pcs Ø273 discharging pipe.
【砂金设备技术参数】
Technical parameter
|
名称 Production Name |
规格 |
数量 |
功率/Kw |
备注 |
|
|
砂金设备-移动式五分离心筛分设备 |
底盘 |
重型汽车底盘设计 |
1套(Set) |
- |
含牵引&转向系统 |
|
进料斗 |
3.4*2.85米 材质：10#钢板 |
1套(Pcs) |
- |
|
|
|
滚筒筛 |
内径1.3米，外径1.6米， |
1套(Set) |
7.5 |
|
|
|
排料管道 |
Ø273mm |
2条(Pcs) |
- |
|
|
|
输送机 |
动力采用齿轮组传动 |
3条(Pcs) |
5.5*3 |
|
|
|
水泵 |
|
1台(Set) |
7.5 |
|
|
|
总功率 |
31.5KW（建议使用50KW发电机组Advise to use generate set 50KW） |
||||
