砂金设备处理量5-10吨/小时球磨车

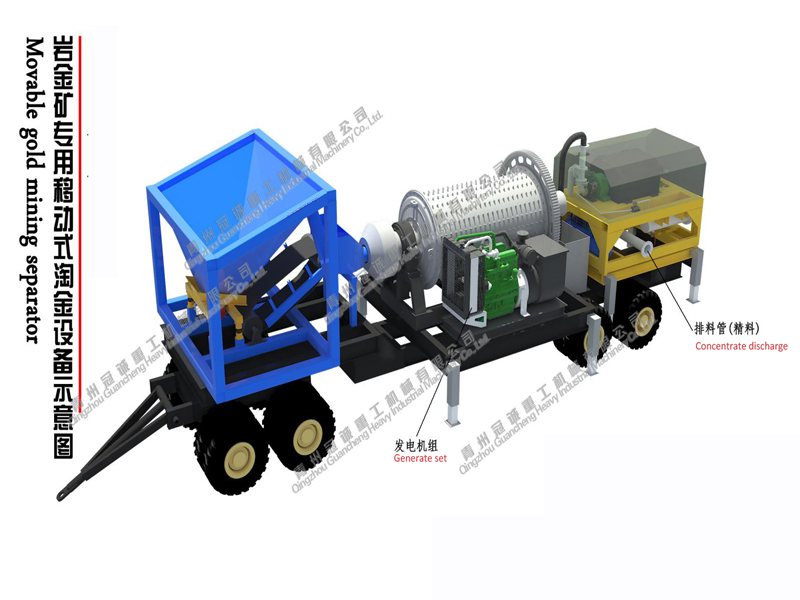

移动球磨淘金车

移动球磨淘金车

一、【产品介绍

1.Base plate design from heavy trailer with driving bar and direction system,generator set,it can be easiler moved or transported.

2.The shaking feeder under feed hopper to prevent clogging of material

3. The concentrator sysytem we use horizontal auto discharge concentrator,separating and easy to operate and discharging auto controlled with PLC druing which 2nd time the scrap material’s recovery by amalgamating board slucie.(The horizontal type gold concentrator instead of vertical type which can be working only on ground level provide good performance as a unit of the car)

二、流程概述】

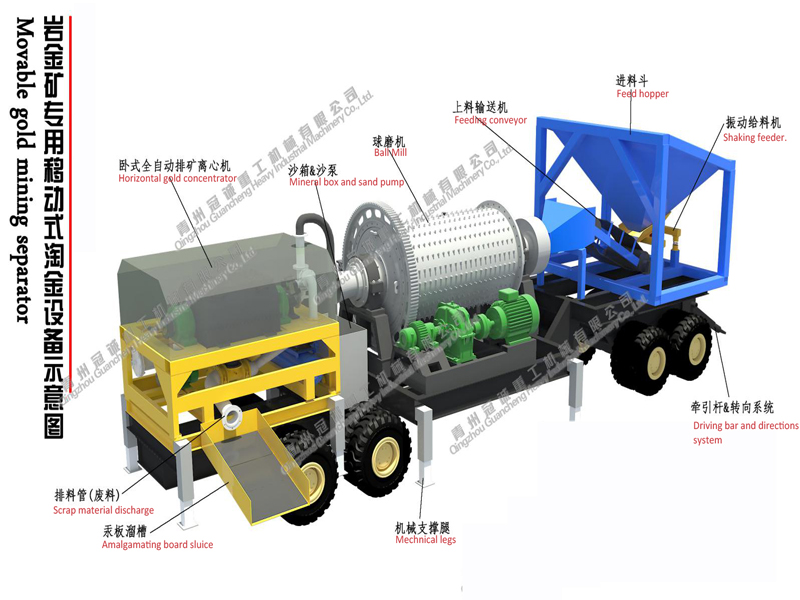

原料通过工程车辆送入进料斗中,通过振动给料机均匀给入上料输送机中,然后送入球磨机内时行球磨,球磨后的物料排入沙箱内,通过沙泵送入离心机内进行精选,精选后的精料会自动排出,废料通过一条汞板溜槽收尾后,废料排入废料区域。

Technical process

The material getting into feed hopper by excavator or other machines,the the shaking feeder can make material well distributed onto conveyor and then be transporting into ball mill,the getting into horizontal auto discharge concentrator by sand pump in sand box,then concentrate get and scrap material into amalgamating board sluice to be recovered

三、【技术参数】

Detail parameter

处理量:5-10吨/小时

Capacity:5-10ton/hour

外型尺寸:17.5*3*4.2米(长*宽*高)

Outlet size:17.5*3*4.2m(L*W*H)

底盘长度:17.5m

Length of base plate:17.5m

球磨机进料粒度:0-25mm

Ball mill feeding size:0-25mm

球磨机型号:1500*4500   处理量5-11T/h   功率:110KW

Ball mill:1500*4500 capacity:5-11 power:110KW

离心机型号:60#卧式全自动排矿  功率:6.05KW

Horizontal auto discharge concentrator:60# power:6.05KW

发电机组:配备150KW发电机组1台

Generator set:150kw 1set

牵引速度:建议不超过15Km/h

Driving speed:advise to be less than 15km/h
