俄罗斯移动淘金车及全自动排矿卧式离心机组合

 移动淘金设备

移动淘金车组合

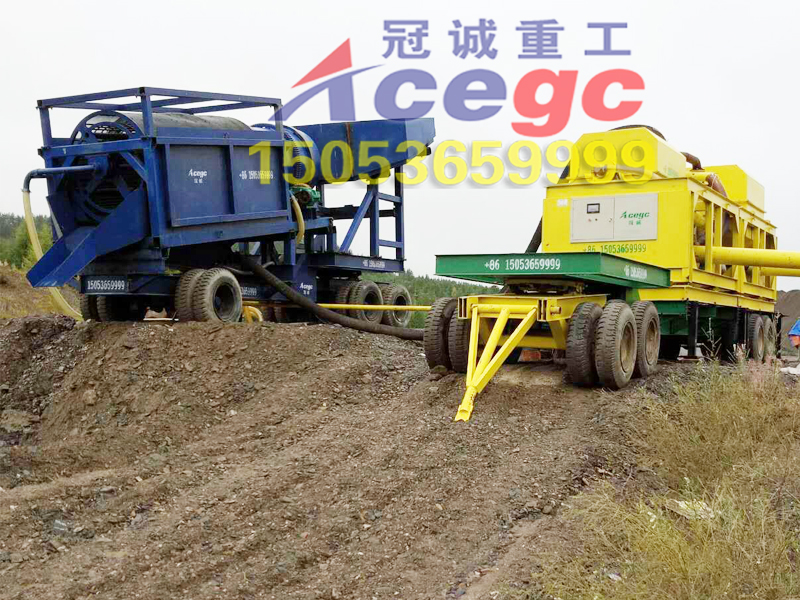

本套设备是发往俄罗斯的移动砂金设备,本套沙金选矿设备具体请看以下介绍。

1、采用移动式,一部为移动滚筒筛分系统,另一部移动淘金车为移动离心淘金车作为精选用。

2、上料方式可以使用挖掘机或装载机等多种上料方式。

3、移动灵活方便:采用可转向设计,可以原地180度转向。

4底盘采用重型汽车底盘设计,工作稳定可靠。

5、绞洗筒内含四条铰刀,对于物料清洗更加彻底,提高工作效率。

6、针对供水系统进行了优化:
   上料斗内部冲水负责首次冲洗物料并且推送物料进入滚筒筛内;
   滚筒筛中央冲水负责对物料进行主要的冲洗工作;
   滚筒筛侧冲水负责冲洗滚筒筛外部细筛网,防止堵孔。

7、集成度高,本辆移动淘金车集成了卧式全自动排矿离心机于一体,使用沙泵上料,4条机械支撑腿支撑,工作稳定可靠。(卧式离心机好处是转子采用两端固定,工作时稳定性好,适合用于移动设备上,立式离心机只能用于地面上,安装时必须做硬化,寻找水平)

8、技术含量高:采用全自动排矿排矿卧式离心机等砂金设备配置,沙金提取设备,砂金提取设备选金设备提高回收率。

 Features

   This gold separating car including 2units,the 1st unit is gold trommel classifying unit car,the 2nd unit is movable centrifugal car to get gold concentrate.

   It can be easily feed by excavators or other types

   It can be easily moved&circled in 180 degree

   The base plate use heavy trailer type,good performance of steady and reliable work.

   The inner of reamer trommel screen including 4 reamers so it can be worked in high efficiency and make minerals more clean.

   Water supplying system: washing on top of hopper the then pushing the mixture to flow to the screen,washing in middle of screen which is the most principal,washing in screen outside it can clean the material carefully and avoid the gambling plug.

   The movable gold reamer trommel separating car with 1set horizontal auto discharge concentrator,feeding type is by 1set sand pump,with 4 mechanical holding frames,working in reliable and steady surroundings.(the horizontal concentrator is with spindle 2side fixed,it can a very good performance in jolting surroundings instead of vertical type which can only be used on ground level)

   It works well with high recovery with horizontal automatic discharge centrifuge concentrator.
