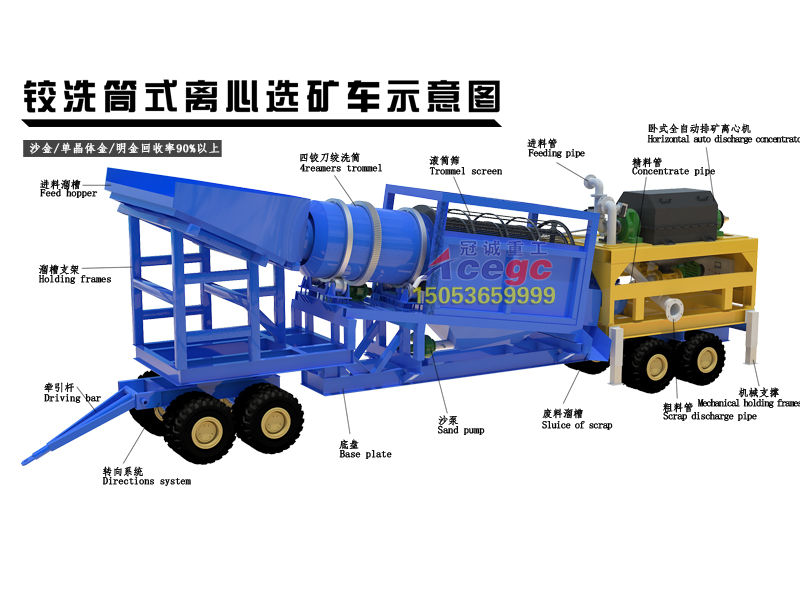

冠城铰洗式离心选矿车
【砂金设备简介】
本套砂金设备为移动式离心选矿淘金车,是青州冠诚重工机械有限公司独立设计、研发制作,通过售后服务、用户回访等渠道不断完善改进,现已经成为一种先进成熟的移动式砂金机械;
该砂金机械移动淘金车可以使用挖掘机、装载机等多种上料方式,适用于沙金矿、岩金尾矿等大部分地选金场合,是比较成熟的选金矿设备(选金矿机械,沙金选矿设备,砂金干选设备,砂金干选机械,沙金设备)。
Introduction
This movable reamers trommel screen centrifugal gold separating car is designed&manufactured by ourselves,improving our technology by service aftersales and advice of customers etc,now it’s advanced and well-rounded technology in china.
This type of machine can be feed by excavator or wheel loader,which is widely used in gravel sand mine,tailings of rock gold mine etc.
【该砂金设备移动淘金车特点】
1、上料方式可以使用挖掘机或装载机等多种上料方式。
2、移动灵活方便:采用可转向设计,可以原地180度转向。
3、底盘采用重型汽车底盘设计,四轴16条轮胎,另加支撑腿支撑,工作稳定可靠。
4、绞洗筒内含四条铰刀,对于物料清洗更加彻底,提高工作效率。
5、针对供水系统进行了优化:
上料斗内部冲水负责首次冲洗物料并且推送物料进入滚筒筛内;
滚筒筛中央冲水负责对物料进行主要的冲洗工作;
滚筒筛侧冲水负责冲洗滚筒筛外部细筛网,防止堵孔。
6、集成度高,本辆移动淘金车集成了1台1200#卧式全自动排矿离心机于一体,使用一台4寸沙泵上料,4条机械支撑腿支撑,工作稳定可靠。(卧式离心机好处是转子采用两端固定,工作时稳定性好,适合用于移动设备上,立式离心机只能用于地面上,安装时必须做硬化,寻找水平)
7、扩展性强:可以附加其它振动溜槽/鼓动溜槽、离心机等选金设备提高回收率。
Features
It can be easily feed by excavators or other types
It can be easily moved&circled in 180 degree
The base plate use heavy trailer type,4axles and 16 tyre with mechanical holding frames with good performance of steady and reliable work.
The inner of reamer trommel screen including 4 reamers so it can be worked in high efficiency and make minerals more clean.
Water supplying system: washing on top of hopper the then pushing the mixture to flow to the screen,washing in middle of screen which is the most principal,washing in screen outside it can clean the material carefully and avoid the gambling plug.
The movable gold reamer trommel separating car with 1set horizontal auto discharge concentrator,feeding type is by 1set 4 inch sand pump,with 4 mechanical holding frames,working in reliable and steady surroundings.(the horizontal concentrator is with spindle 2side fixed,it can a very good performance in jolting surroundings instead of vertical type which can only be used on ground level)
It works well with other machines such as shaking sluice/pulsating slucie,centrifuge concentrator etc.
青州冠诚重工机械有限公司是砂金设备,选砂金机械,砂金机械,砂金提取机械,砂金开采设备,砂金开采生产厂家选金矿机械,选金矿设备,砂金干选设备,沙金设备,选沙金机械,砂金提取机械,砂金开采,砂金设备厂家,砂金设备价格,沙金提取设备,具体选沙金、选砂金产品有选金离心机,选金船,移动小车,振动筛淘金组合,岩金破碎机,溜槽等,欢迎咨询
公司地址:山东省青州市黄楼街道办事处西建德村
联系电话:15053659999 联系人:李明经理
